Magic XT1

Magic XT1

2.4GHz Wireless Microphone System
Watch Video

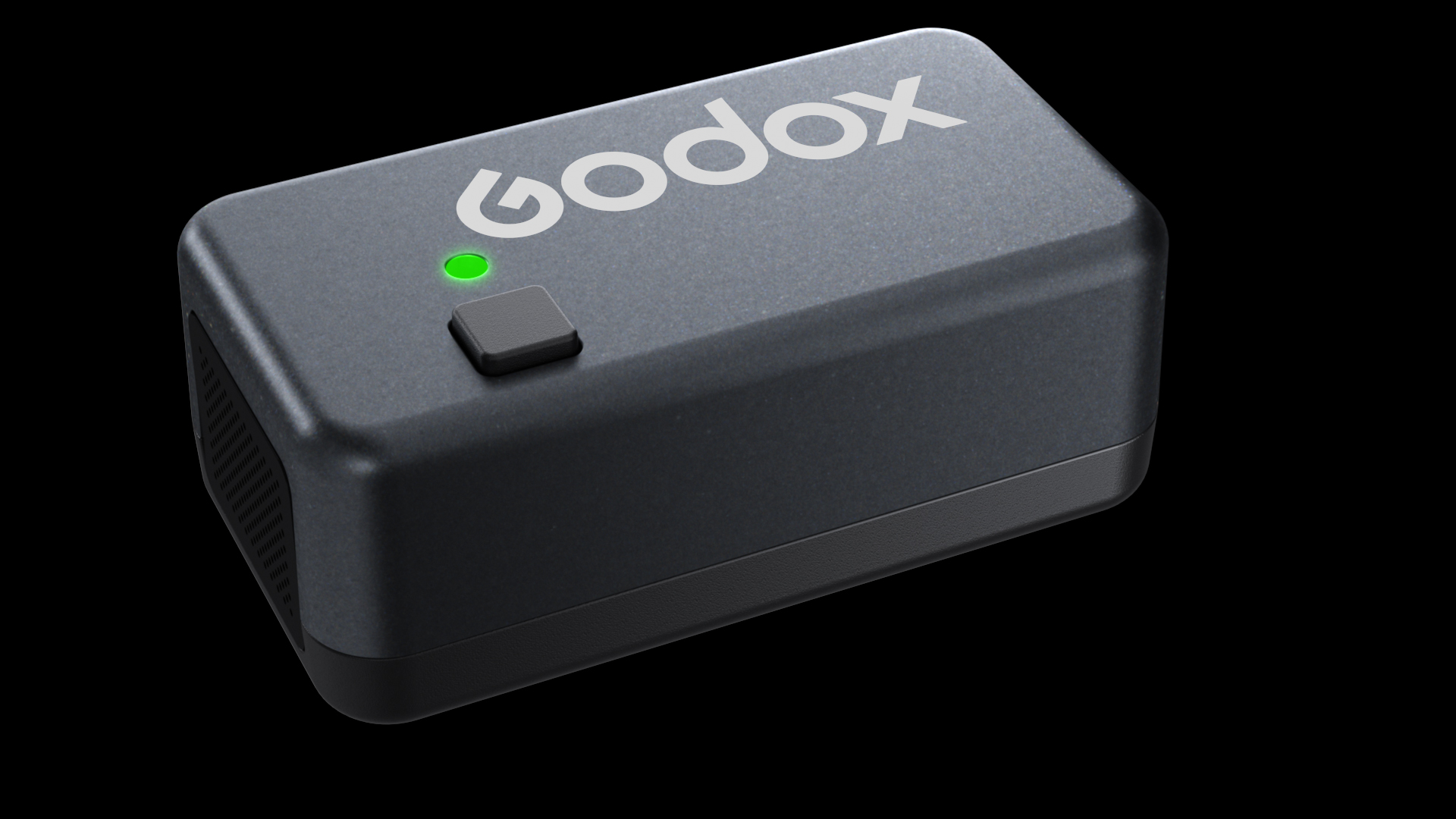

A Receiver Also Charging Case

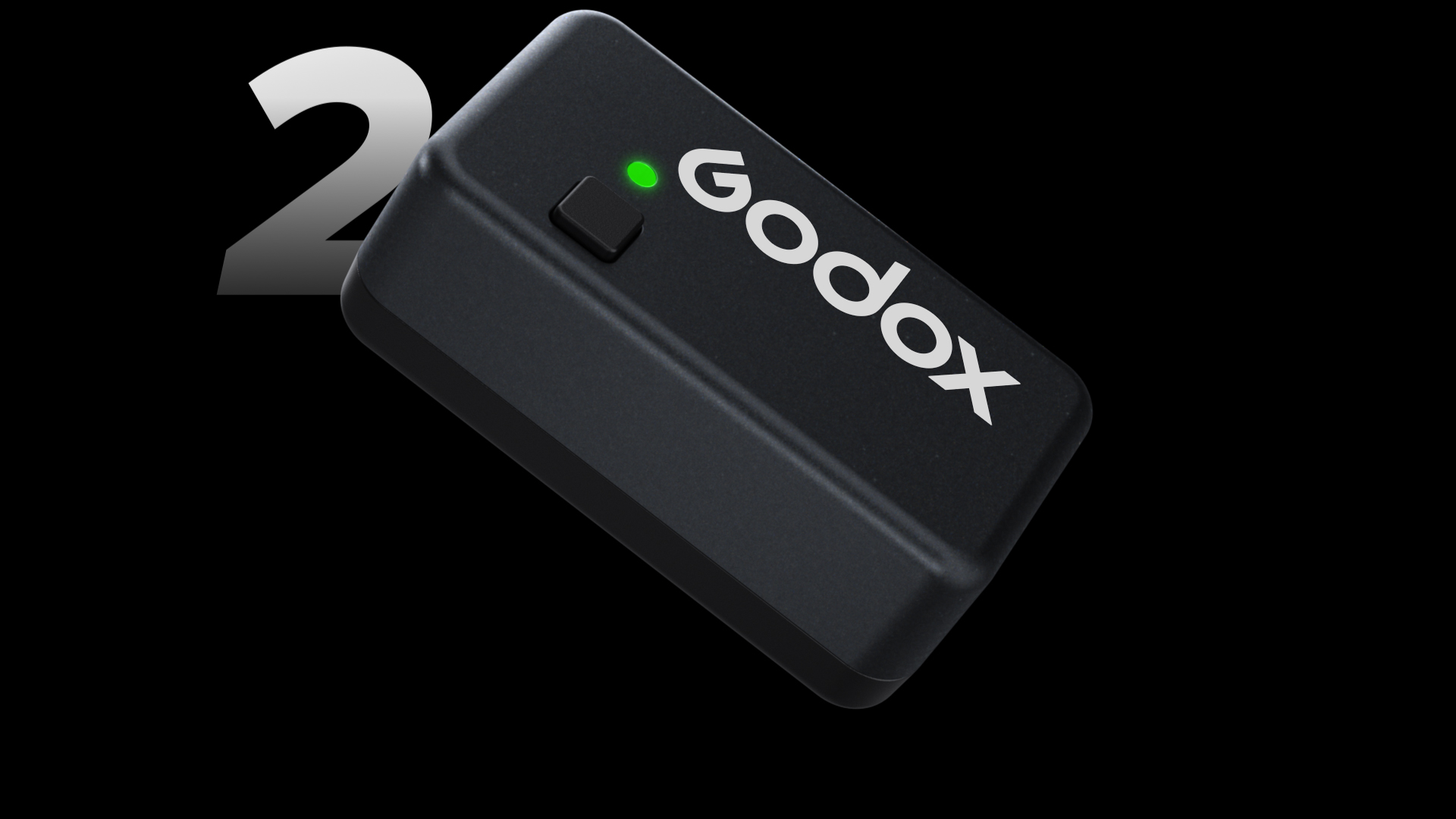

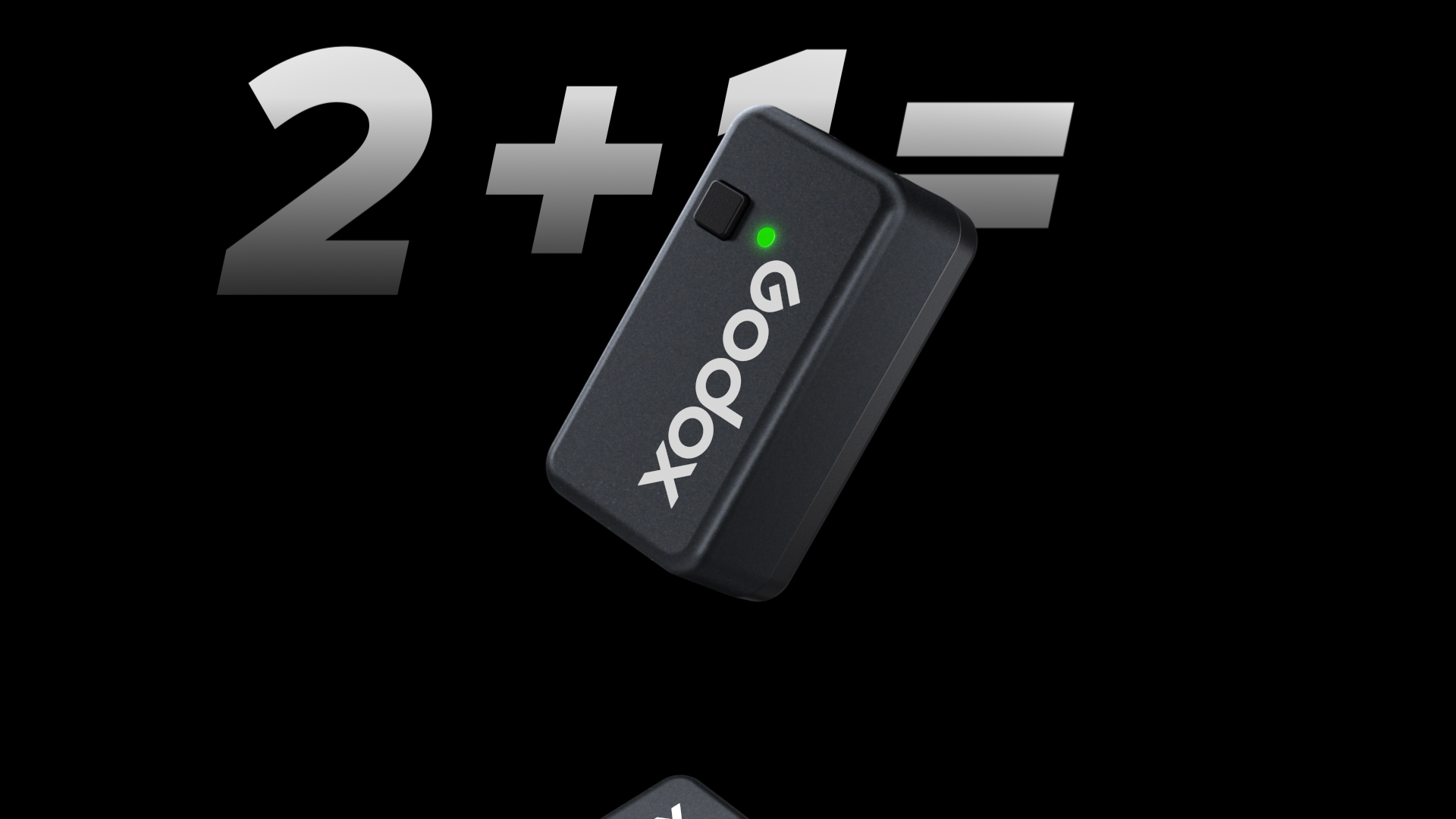

Using an unparalleled 2+1=1 design language, Magic XT1 presents a groundbreaking new appearance with a transmitter-in-receiver structure for both TXs charging & storage in one RX, delivering magical portability for interview, livestream, outdoor shooting and more.

Premium Acoustic Build

Crafted with top-notch acoustic technology, Magic XT1 boasts premium microphone components delivering impressive 48kHz/24bit Hi-Res audio with a 70dB SNR and a Max. 115dB SPL.

Mono/Stereo/Safety Track

Magic XT1 provides 3 recording modes – Mono/Stereo/-6dB Safety Track, presenting high-quality audio capture and added security for various applications.

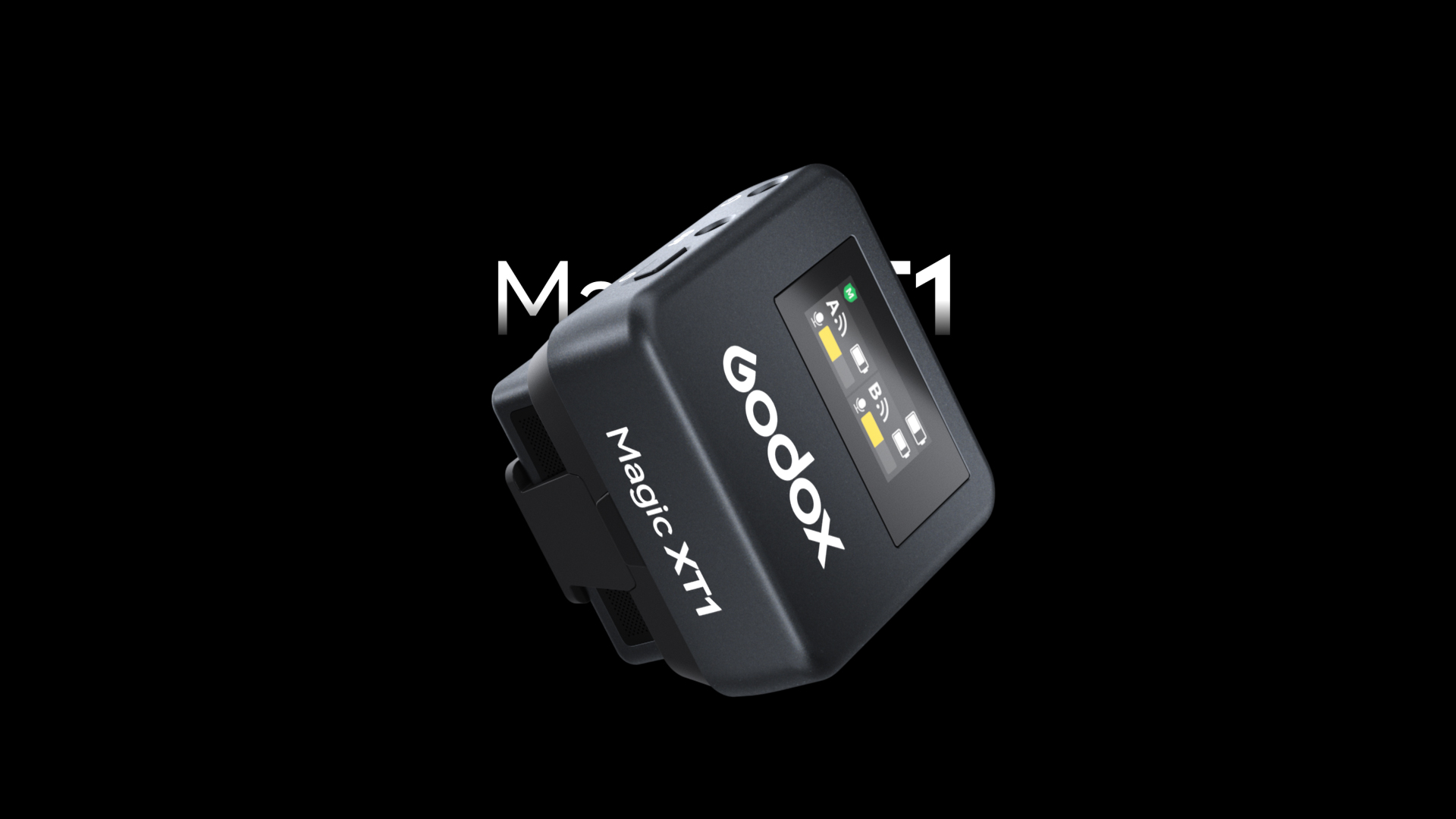

Customizable Touchscreen Interface

Magic XT1 is engineered with an intuitive OLED touchscreen & buttons as well as a 3.5mm headphone jack for effortlessly fine-tuning and real-time monitoring in every recording scenario.

UAC Support
Digital Audio Recording

Supported by the USB Audio Class (UAC) standards, Magic XT1 enables users to get Instant digital audio connectivity to the desktop and create via a single Type-C cable.

Pro Audio Treatment

The system offers powerful custom settings, including 1-click dynamic noise reduction (DNR), 150Hz low-cut filter, and 10-level volume adjustment for precise tuning of each microphone.

Max. 200M LOS Range

Constructed with a high-gain 2.4GHz antenna, Magic XT1 can achieve up to 200m line-of-sight transmission distance, letting you stay connected even in challenging scenarios.

Up to 16h Working Time

The transmitter provides approx. 8 hours of runtime, and the entire system powered by the RX supports up to 16 hours of recording, making it an excellent on-the-go gear for your content creation.

Tech Specs
System ModelMagic XT1
Transmission Type2.4GHz frequency hopping system
Pickup PatternOmnidirectional
Frequency Range20Hz~20KHz
Max. SPL115dB
Sampling Rate48kHz/24bit
Signal to Noise Ratio ≈70dB
Max. Wireless Transmission Distance200m (sight distance)
Working Environment Temperature-10℃ ~+50℃
Input/Output Parameters

TX Charging Paints: 5V⎓60mA

RX Charging Points: 5V⎓80mA (*2)

RX USB-C Inputs: 5V⎓550mA

Lithium Battery Parameters

TX: 3.8V, 80mAh, 0.304Wh

RX: 3.8V, 680mAh, 2.58Wh

Working Time

TX: Approx. 8h

RX: Approx. 16h (with two transmitters)

Charging Time

TX: Approx.2h

RX: Approx. 2.5h

Dimension ≈

TX: 0.66”X0.35”X0.25”

RX: 0.94”X0.94”X0.69”

Net Weight ≈

TX (excluding the magnetic back button): 8g

RX: 50g


Downloads
Product Firmware
Product Manual
