Model | V480C | V480S | V480N | V480 F | V480 O |
Global Shutter Sync Shooting | / | Provided | / | / | / |
Radio Wireless Global Shutter Sync | / | Provided | / | / | / |
Guide Number(1/1 step, 105mm focal length) | Approx. GN50 (ISO 100, in meters) | ||||
Flash Coverage | Auto zoom (flash coverage is set automatically to match the lens focal length and image size) | ||||
Manual zoom(24-105mm) | |||||

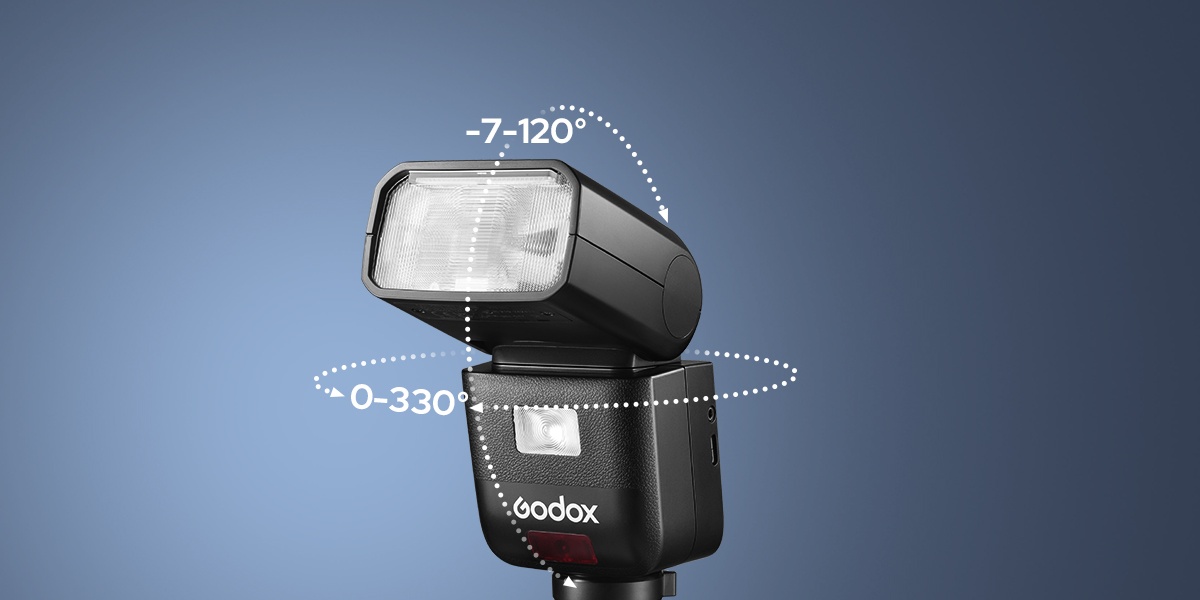

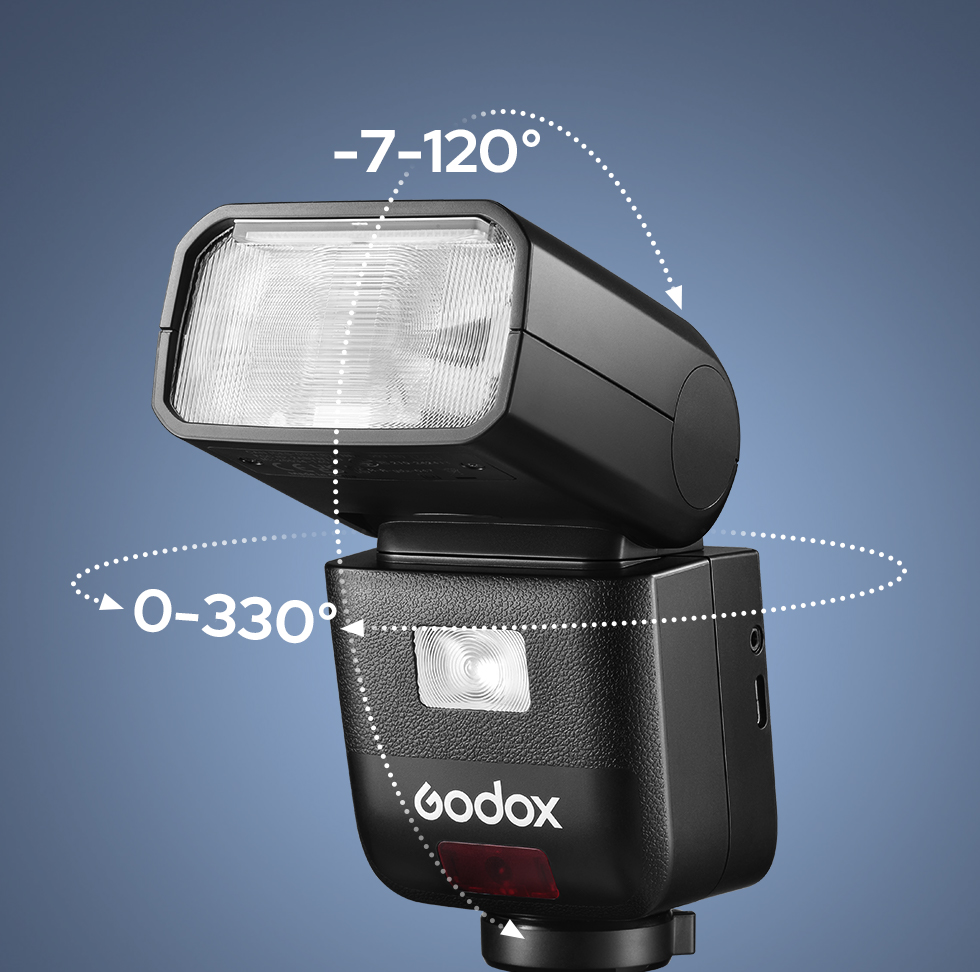

Flash Head Angle | Swinging/tilting flash head (bounce flash): 0 to 330° horizontally and -7° to 120° vertically | ||||
Flash Duration (t0.1) | 1/600s-1/20000s | ||||
Exposure Control | |||||
Exposure Control System | TTL auto flash and manual flash | ||||
Flash Exposure Compensation (FEC) | ±3 steps with 1/3 increment each step | ||||
Sync Mode | High-speed sync (up to 1/8000 seconds,or 1/80000 seconds with Sony cameras equipped with global shutter), first-curtain sync,and second-curtain sync | ||||
Multi Flash | Provided (up to 100 times, 100Hz) | ||||
Wireless Flash (Radio 2.4G Transmission) | |||||

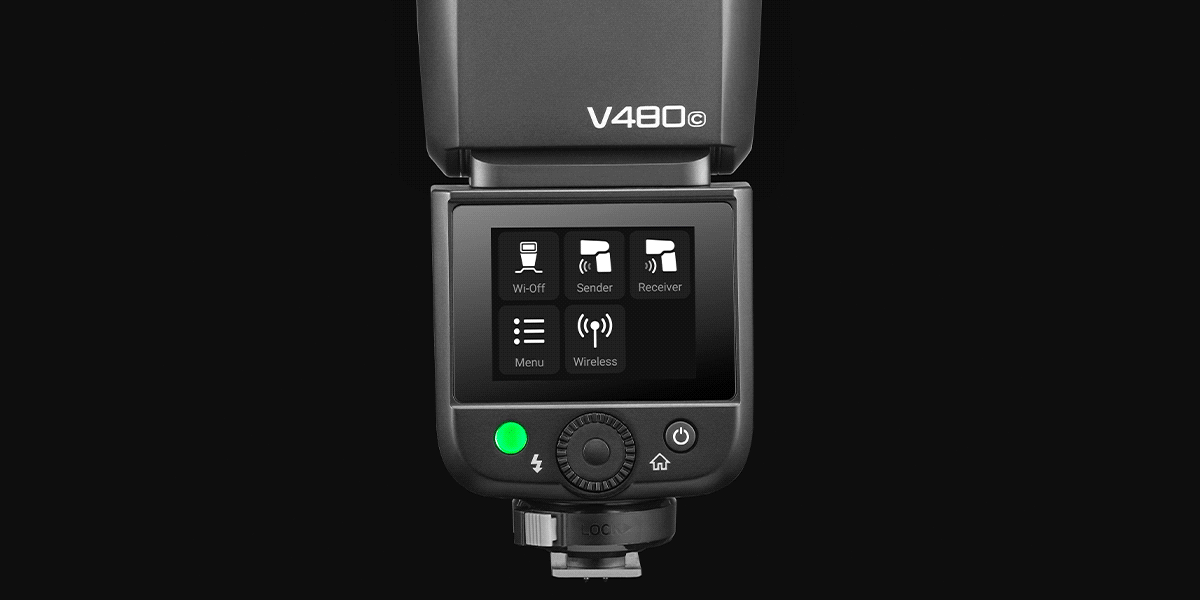

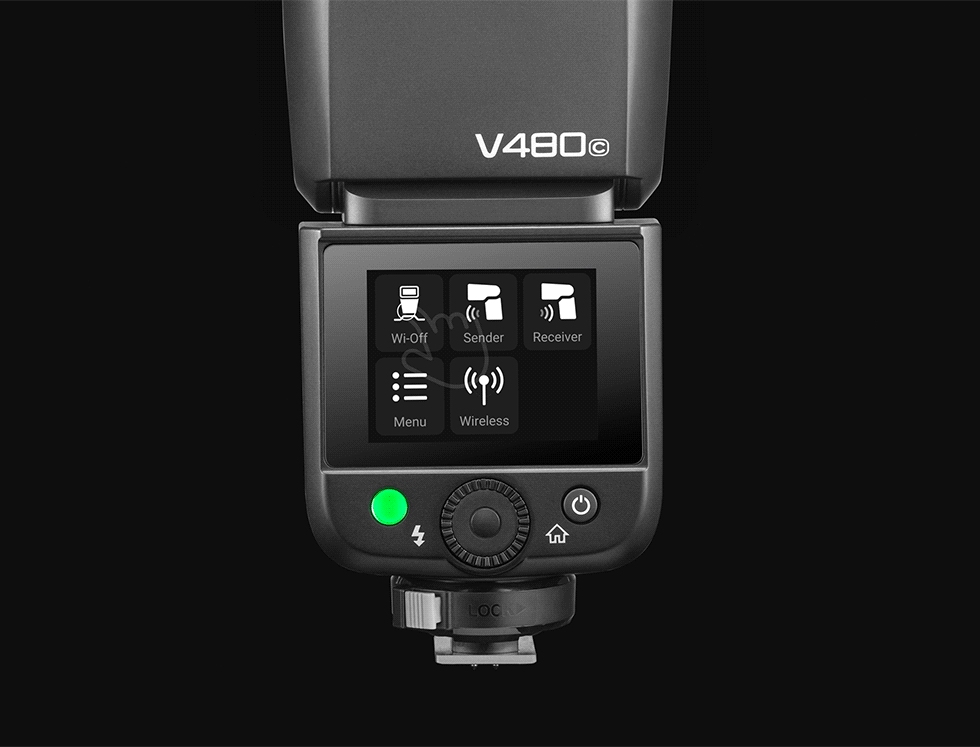

Wireless Function | Sender, Receiver | ||||
Sender Groups | A, B, C, D, E (V480C) M, A, B, C, D (V480 S/ V480 N/ V480 F/ V480 O) | ||||
Receiver Groups | A, B, C, D, E | ||||
Transmission Range (approx.) | 100m | ||||
Channels | 32: 01~32 | ||||
ID | OFF/01~99 | ||||
LED Modeling Lamp | |||||
Power | 2W | ||||
Color Temperature | 5300K±300K | ||||
Power Supply | |||||

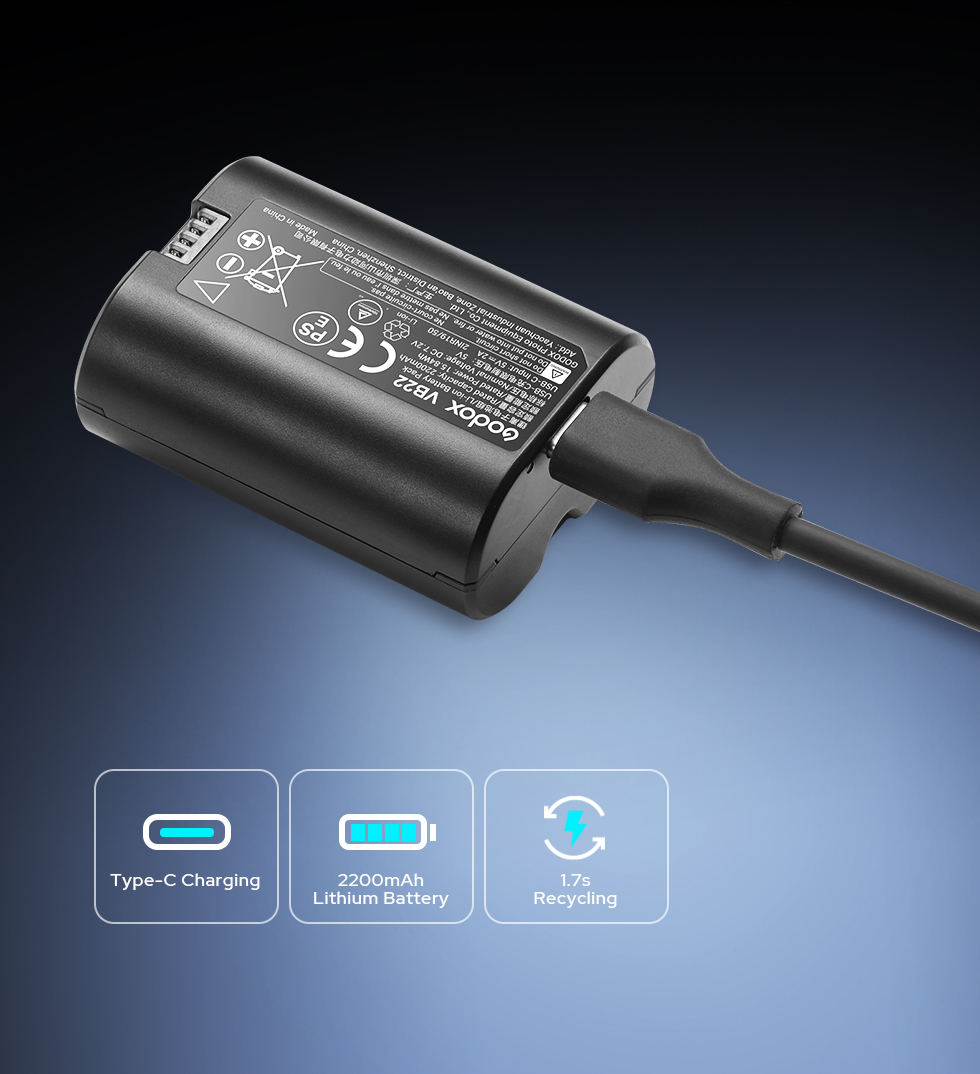

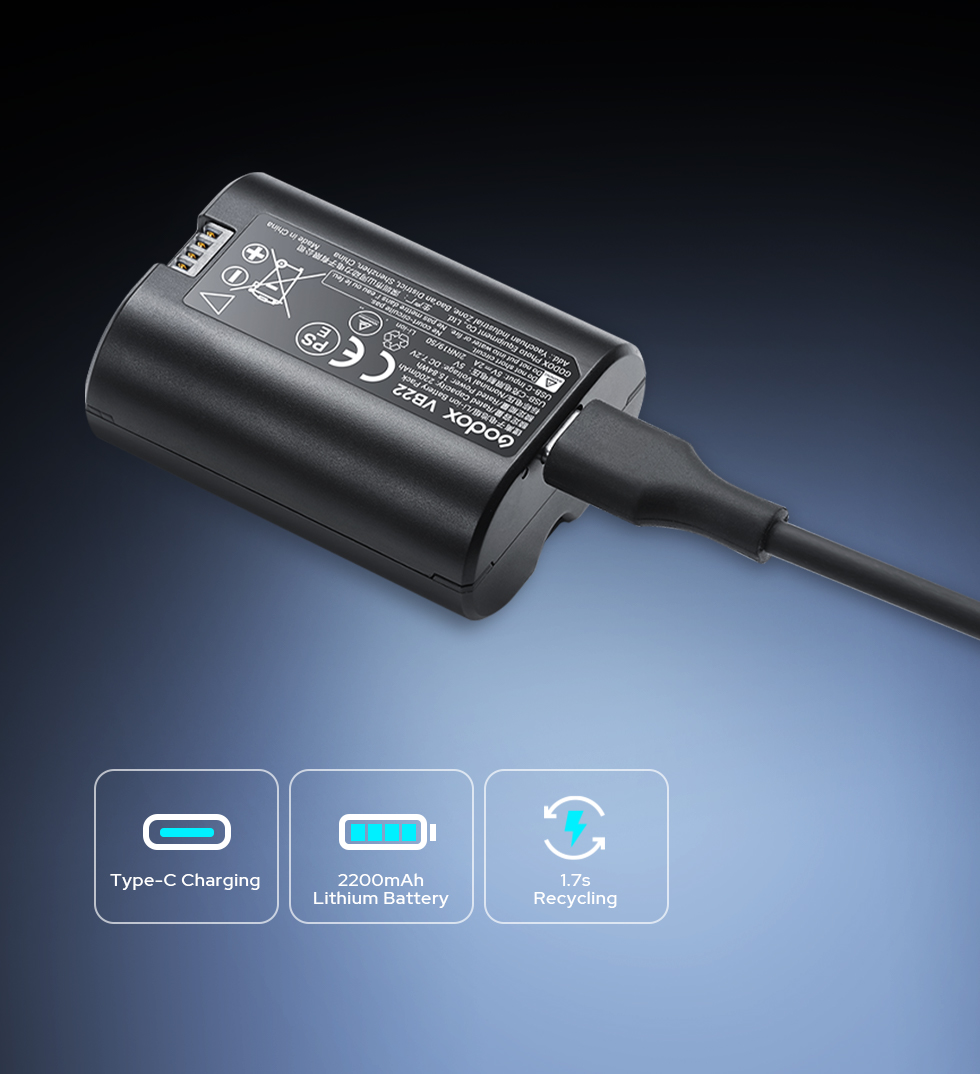

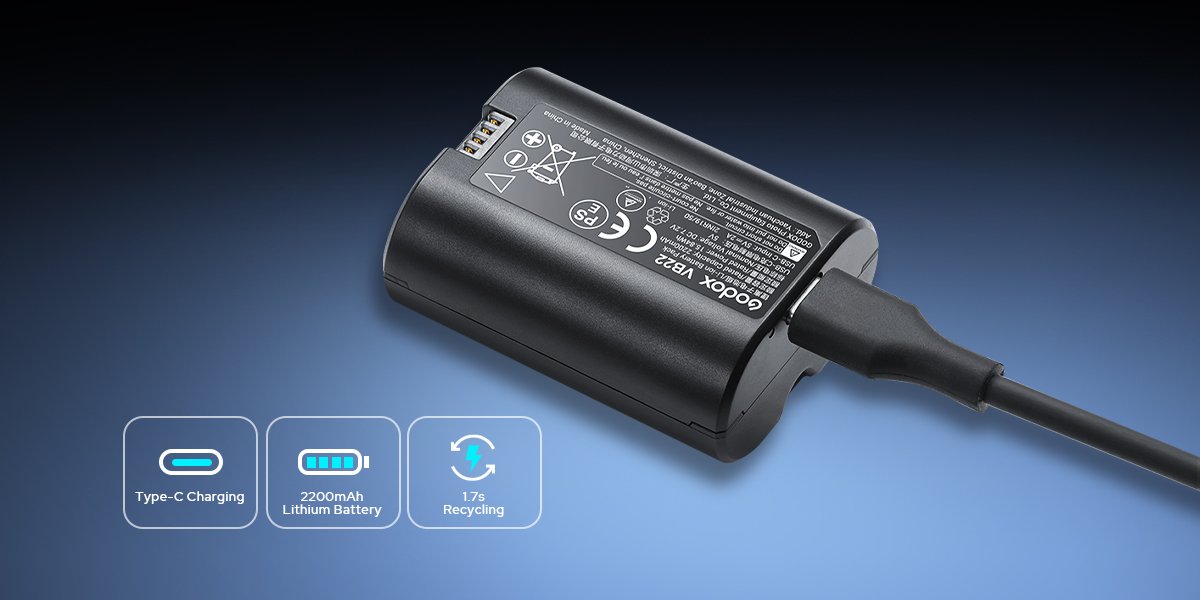

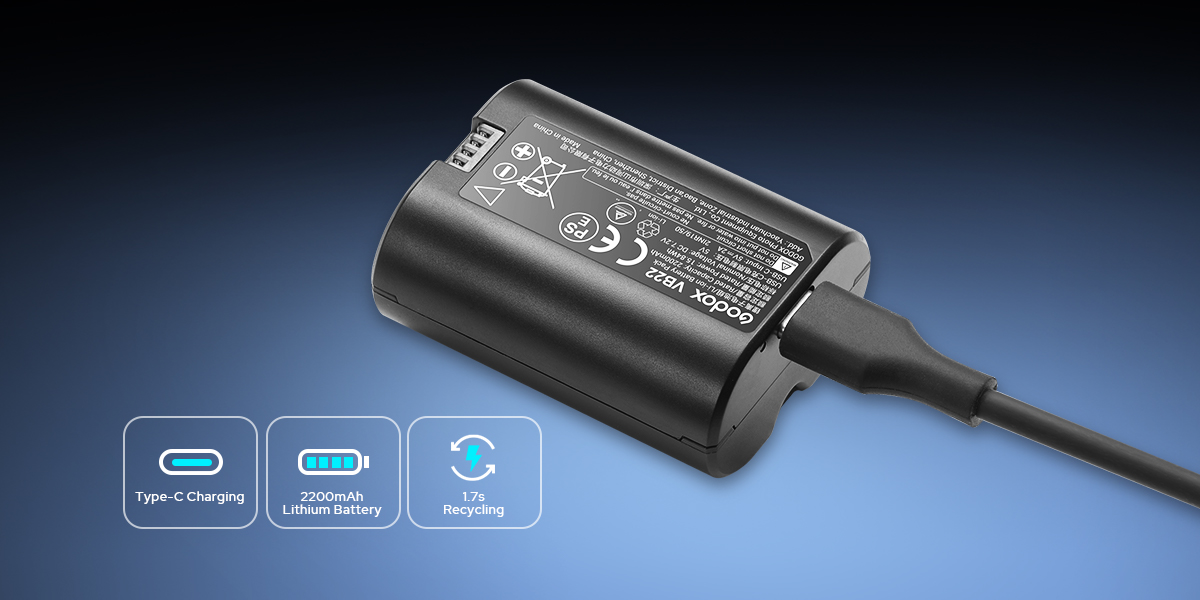

Lithium Battery | 7.2V/2200mAh | ||||
Recycle Time | Approx. 1.7 seconds. LED indicator will light up when the flash is ready. | ||||
Number of Flashes (1/1 step) | Approx. 650 | ||||
Power Saving | Provide standby and auto off functions | ||||
Sync Triggering Mode | Hot shoe, 2.5mm sync cord | ||||
Dimension | |||||
W× H×D | 6.54’’*2.8’’*1.93’’ | ||||
Net Weight Without Battery | Approx. 282g | ||||
Net Weight With Battery | Approx. 361g |
