MG6K
KNOWLED Bi-color LED Light
MG6K

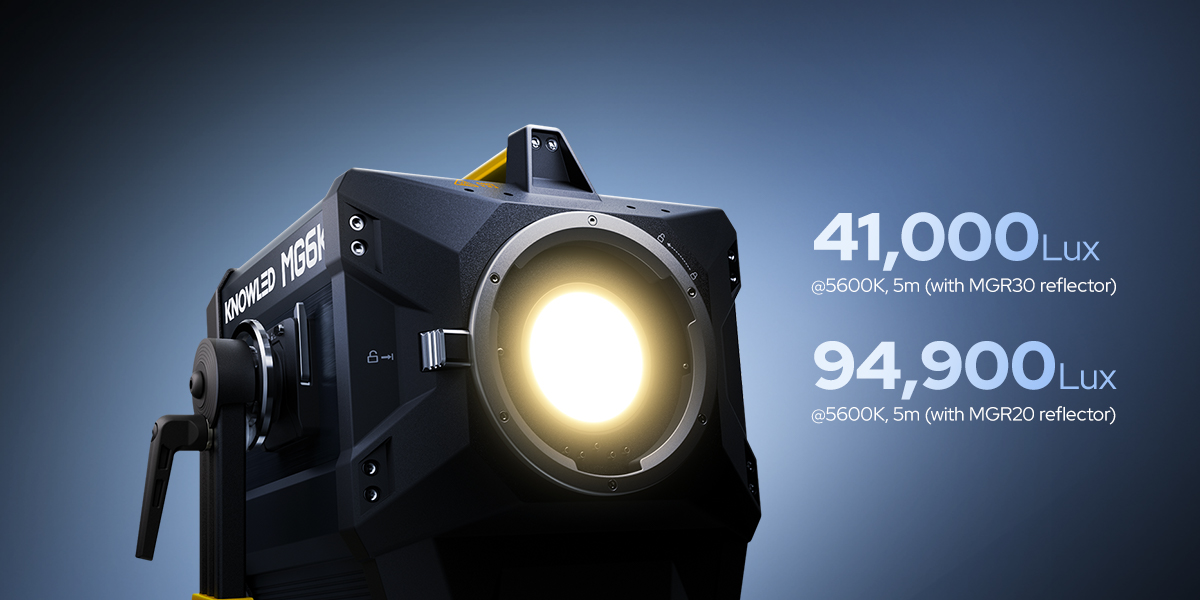

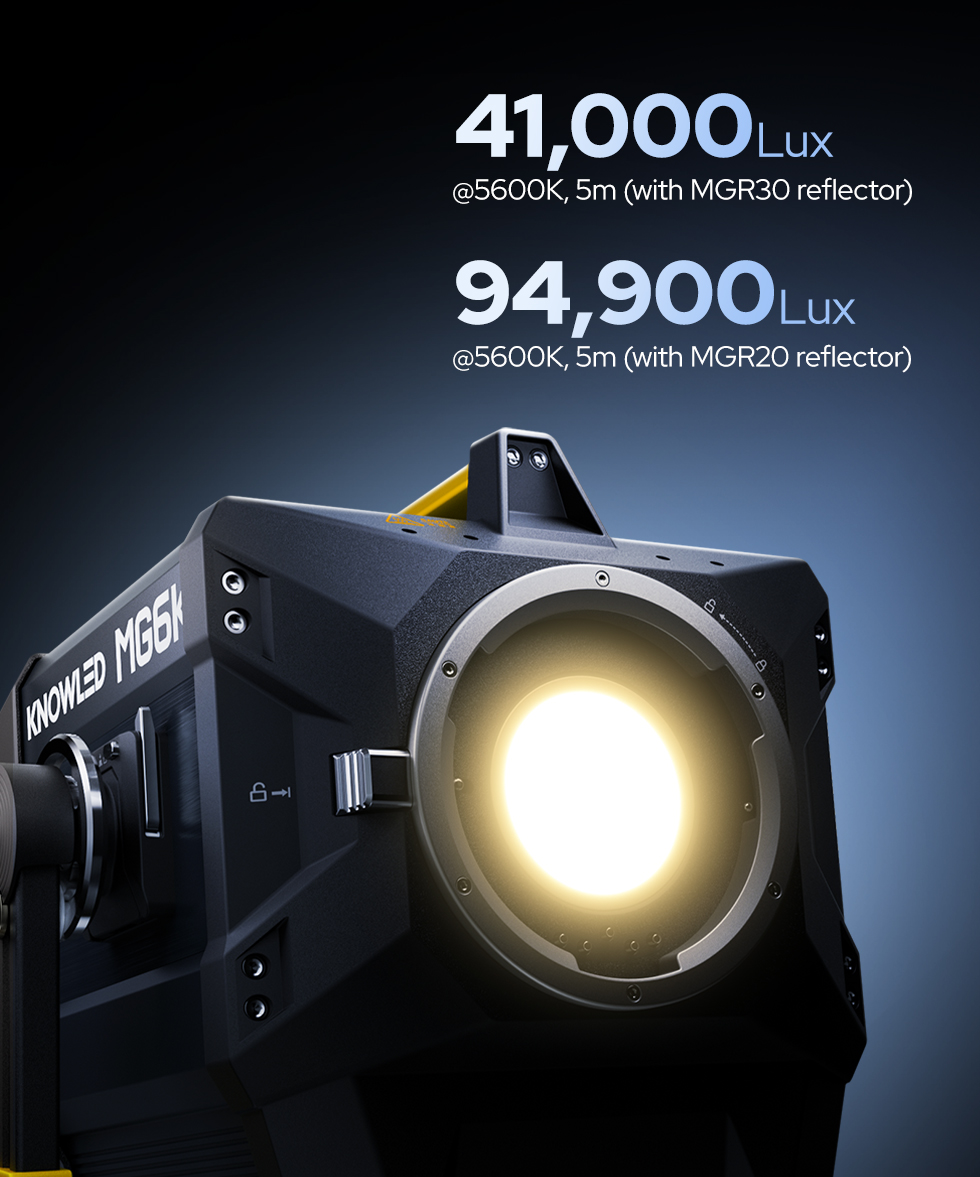

Brighter Than a 6kW HMI

Boasting robust power, the MG6K surpasses the brightness of a 6kW HMI. It lights up instantly, with no pre-heating required.

Exceptional Light Penetration

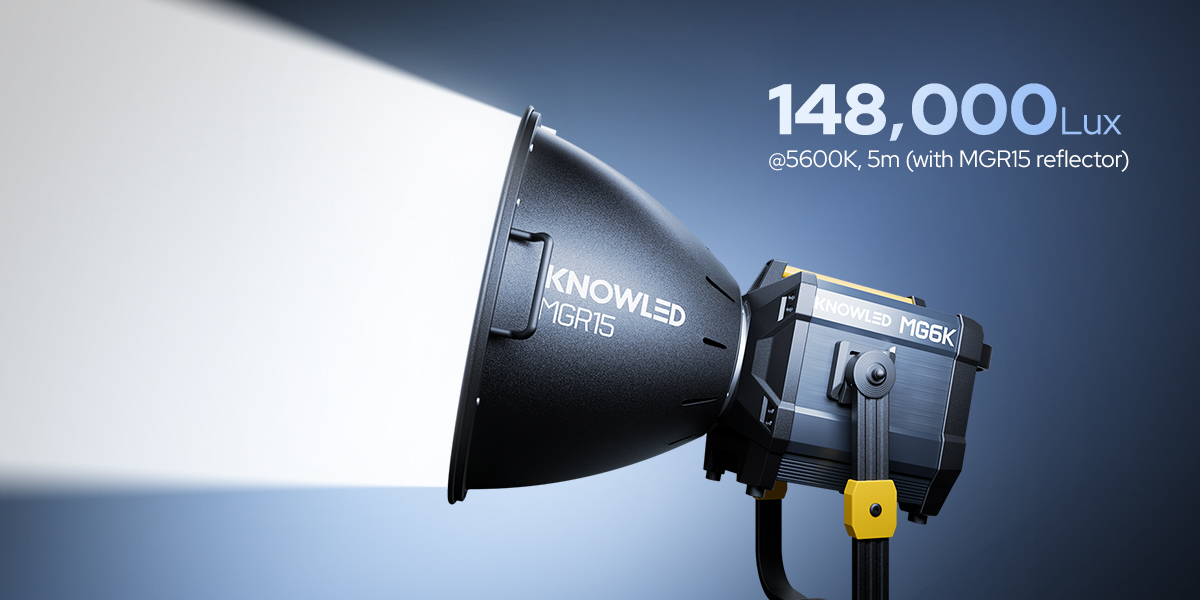

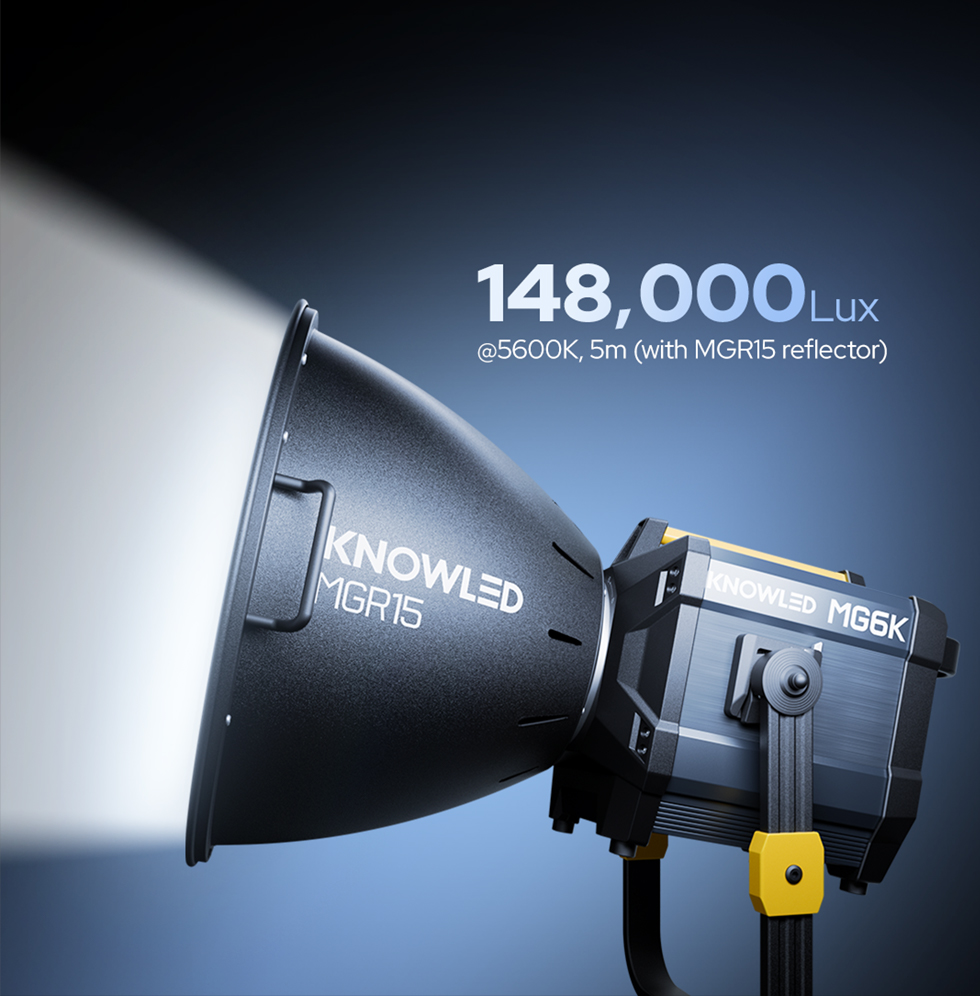

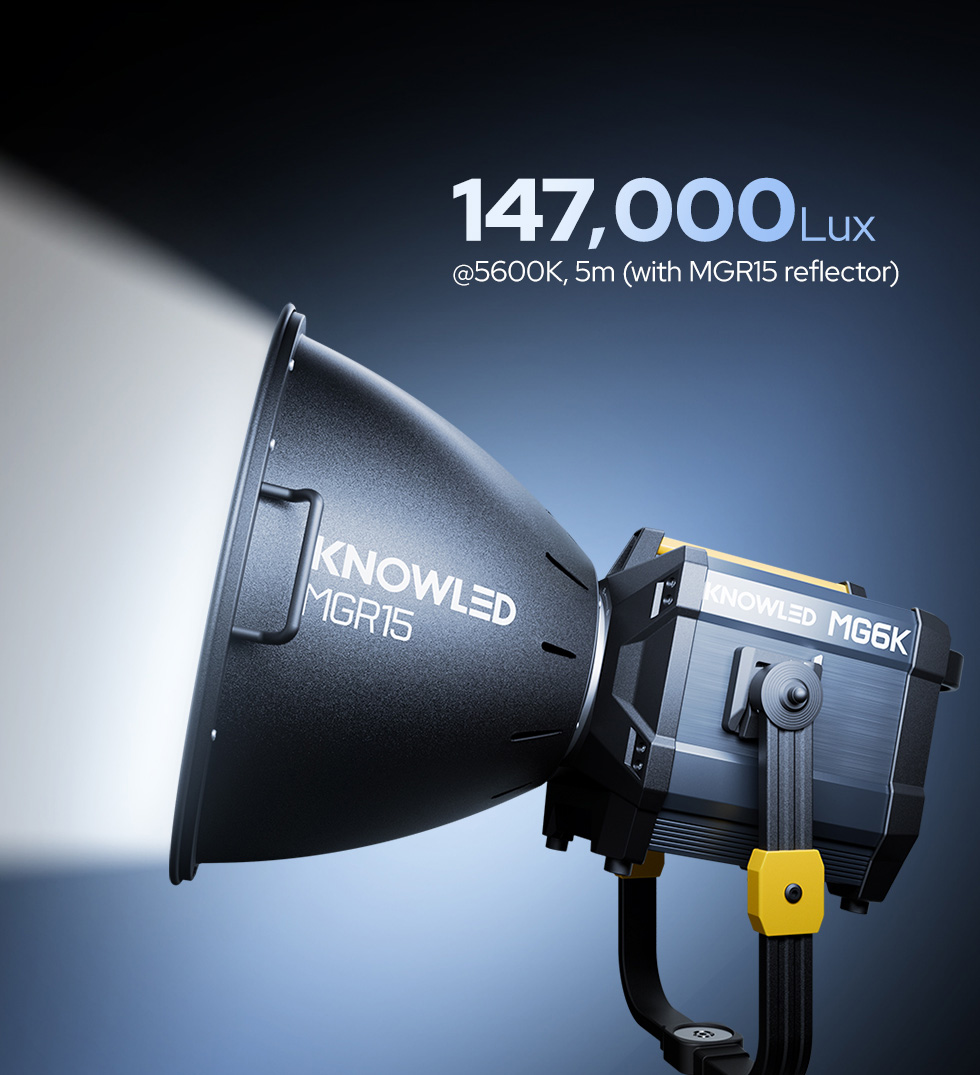

Combined with the MGR15° reflector, the MG6K can greatly boost optical efficiency and minimize light loss. The illuminance can match that of a 6K Par light with a narrow lens, making it ideal for long-distance lighting setups.

Cinematic-Grade Parallel Light


When paired with the BeamLight Max 60/90, the MG6K delivers a powerful 5° beam of cinematic-grade parallel light, offering superior optical efficiency for demanding production needs.

CCT up to 10,000K


The MG6K features a wide adjustable CCT range from 2800K to 10000K, offering flexible control over mood and style to expand creative possibilities.
2800K-10000K CCT Range

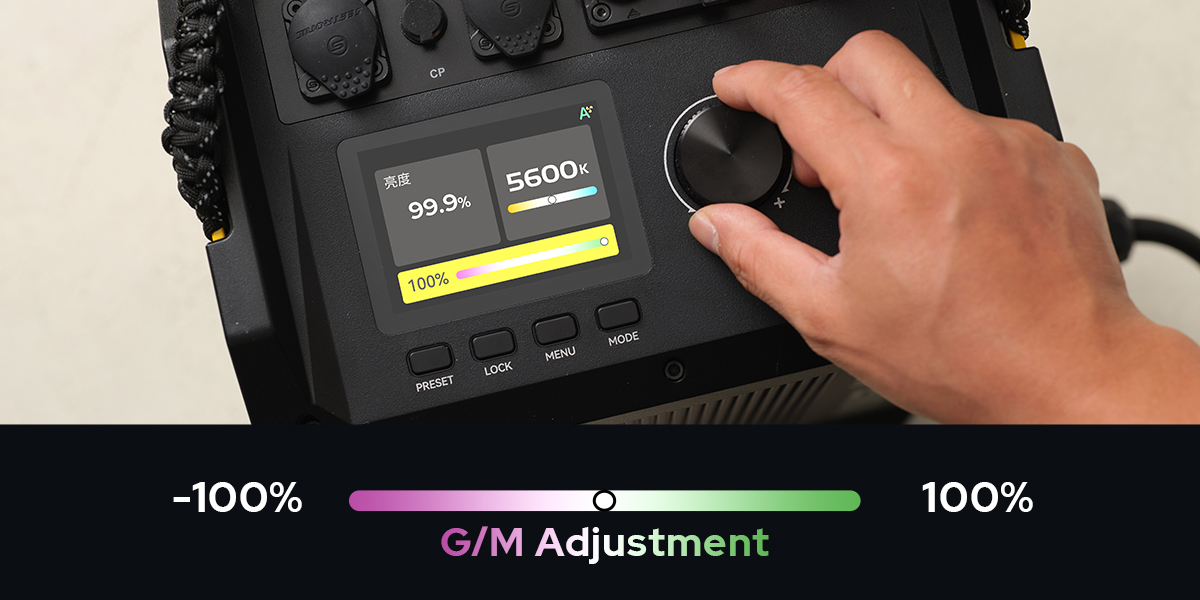

+/- Green/Magenta Adjustment


With a wide ±100% G/M adjustment range, the MG6K enables fast, accurate color matching and integrates seamlessly into mixed lighting environments with HMIs or other fixtures. It also supports 0.1% precision dimming, ensuring smooth transitions and refined light control.

Efficient Cooling


Equipped with an advanced air-cooling system and an optimized structural design, the MG6K achieves a 75% improvement in heat dissipation efficiency, ensuring stable temperature regulation even during prolonged high-load operation.

IP54-Rated Weather Resistance


The MG6K withstands harsh weather conditions such as dust, rain, or fog, ensuring continuous and stable output even in outdoor environments.

Multiple Control Methods


Offering multiple control methods—DMX, CRMX, the KNOWLED APP, Ethernet, Bluetooth, and a control box—the MG6K adapts to a variety of on-set adjustment needs, ensuring a smooth and stable dimming experience.

Lightweight Design One-Person Setup


The MG6K lighthead is significantly lighter than a 6kW HMI, allowing for single-person operation. It weighs only 24.5kg/54lb (28kg/61lb with yoke). With a separated controller, it enables quick on-set adjustments, making it ideal for fast-paced commercial and short-film shoots.

Multiple-Light Head Arrays


By combining a lightweight head with high output, the MG6K streamlines setup and offers a more cost-effective lighting array solution for large-scale productions.

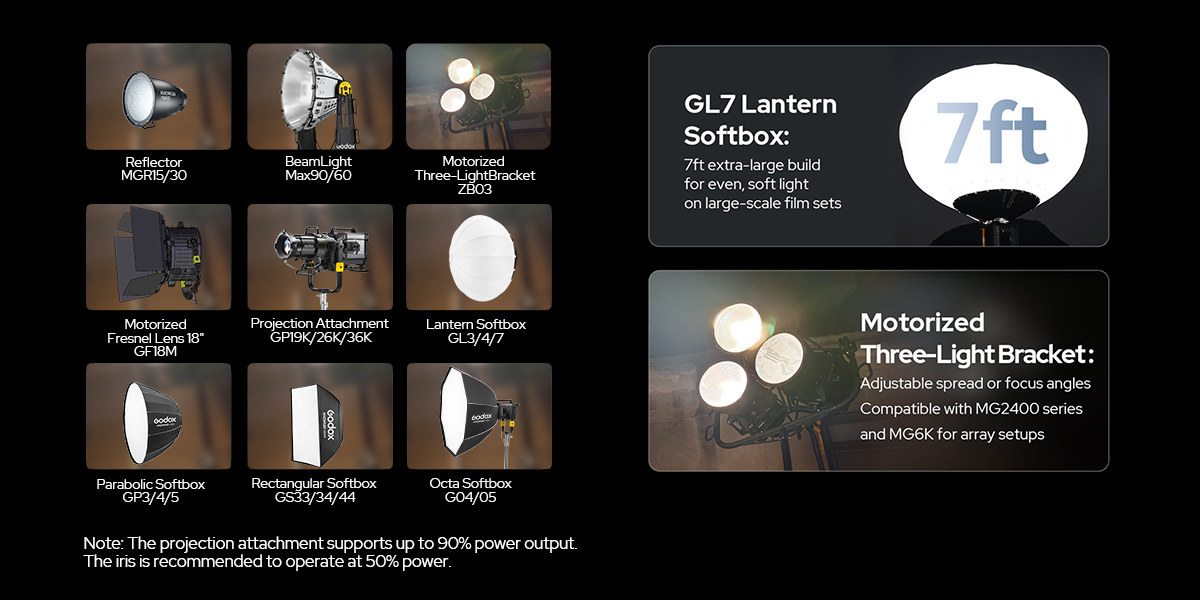

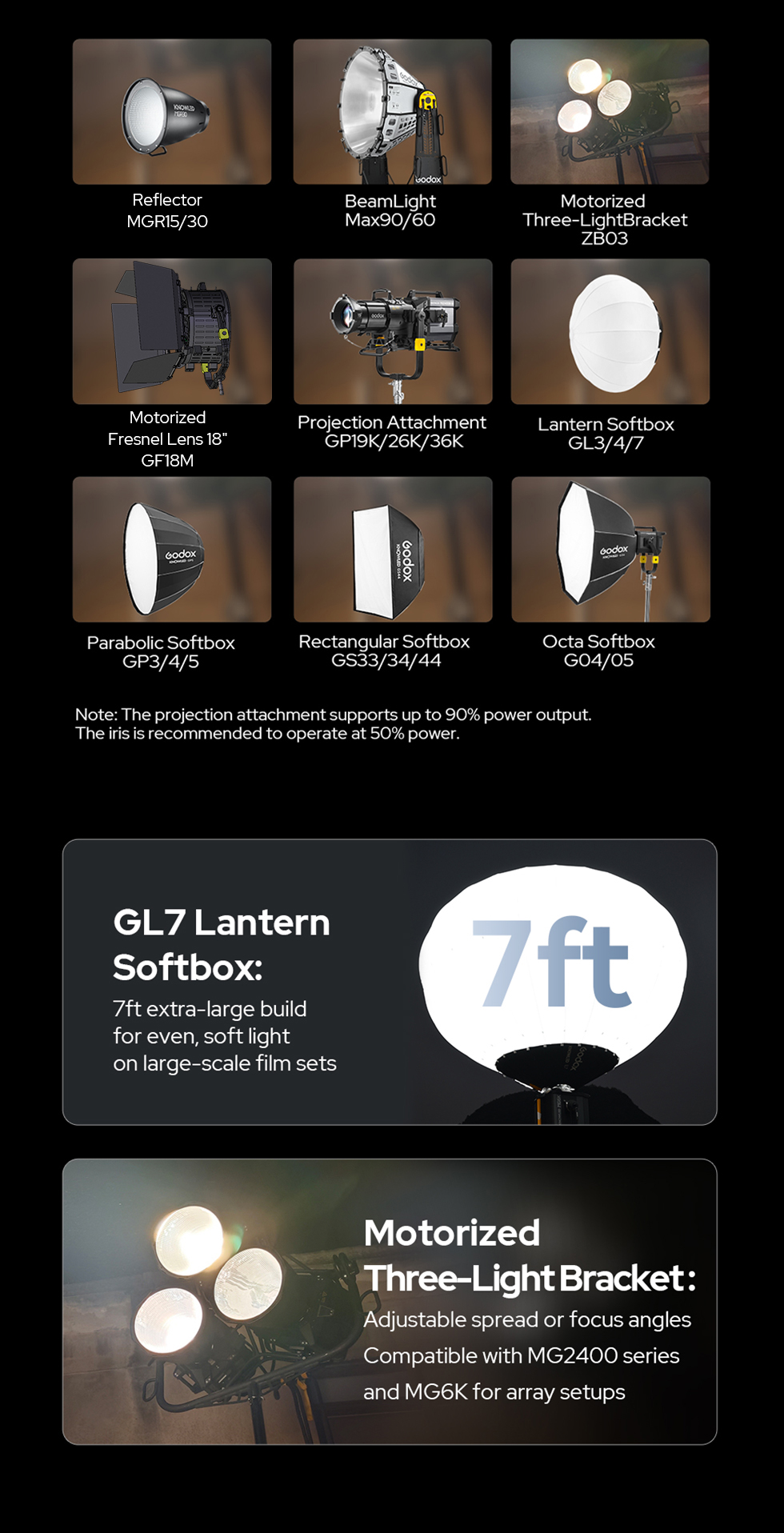

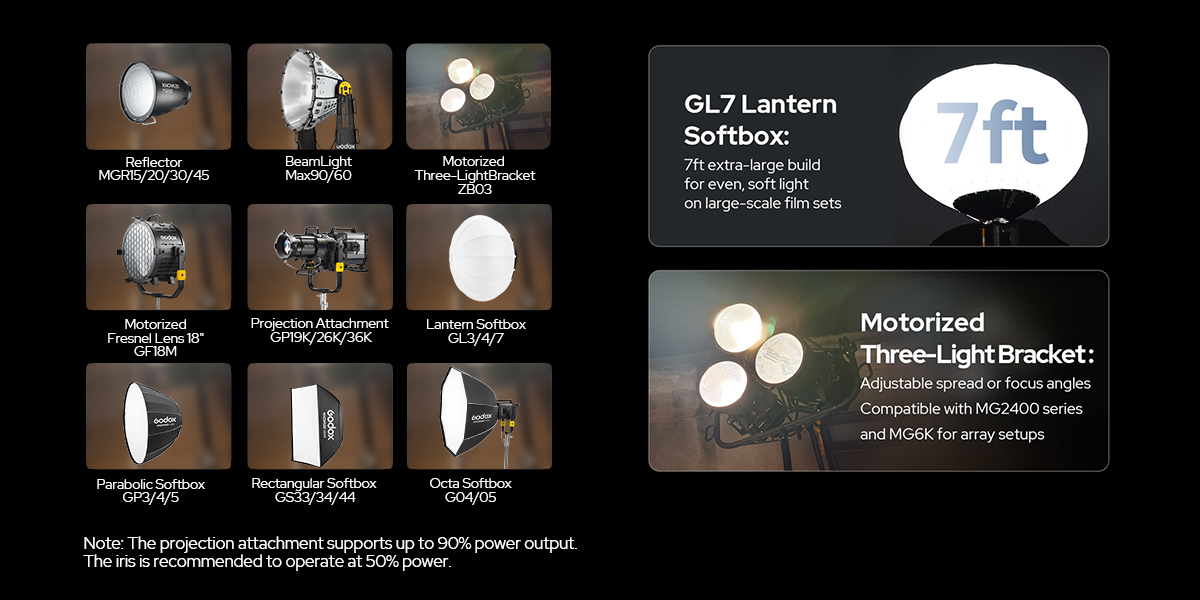

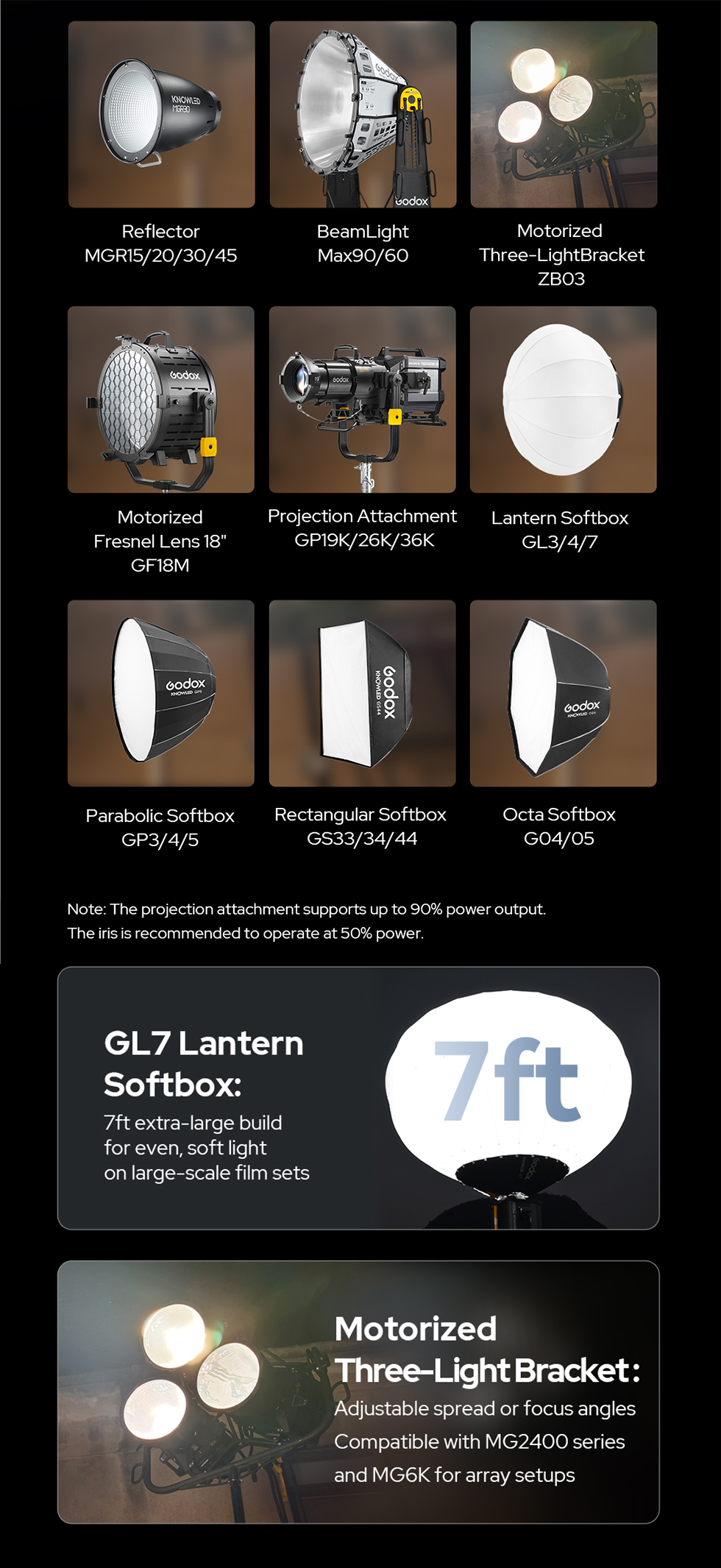

Comprehensive G-Mount Accessory Ecosystem


The MG6K is fully compatible with Godox's G-mount accessory ecosystem. Paired with accessories such as the MGR15°/30° reflector, BeamLight MAX90/60, Motorized Three-Light Bracket, GL7 lantern softbox, Fresnel Lens 18", it offers diverse light-shaping options.


Tech Specs
ModelMG6K
AC Input PortInput: 100V - 240V~ 50/60Hz 4300W (Max.)
CCT Range2800K - 10000K
Brightness Range0.0% - 100.0%
GM Adjust-100% - 100%
Dimming Curveslinear, S - curve, exponential, logarithmic
FX Mode11
CRI≈97
TLCI≈97
Light Body/Controller Protection GradeIP54
Control Methods

DMX512 controller, support RDM protocol/LumenRadio CRMX/

Ethernet/Art - Net&sACN protocol/Bluetooth app/controller control

Bluetooth Controlling Distance60m
USB - A PortFirmware Upgrade/5V ⎓1.5A Power Supply
Power Limit RangeAdjustable from 10% to 100%
Working Environment Temperature-20℃~45℃
Dimension (without U - type bracket and reflector)

Light Body: 14.02"×14.88"×17.09"

Controller: 10.63"×8.27"×6.57"

Netweight (without U - type bracket and reflector)

Light Body: 24.5kg

Controller: 13kg


Downloads
  • Product Firmware
  • Product Manual
