The stylish tool to give life to the scene and dictate the mood – pixel light, a single one can perform abundant colors and different visual moods, will take infinite inspiration for you. Knowled brings you a series of pixel lights with high pixel density, superior color quality, and multiple length options. Assisting in showing your next-level imagination, TP series is ideal.
With the CCT range from 2000K to 10000K in 100K increments, and hue adjustment from 0° to 360°, millions of colors are under your control, and scenes with visual appeal of sorts can be easily created.
The superior pixel density makes it easy to get true-to-life scenes. Being able to control more separate pixels grants a smoother pixel movement, which simulates the actual light moving more vividly and enables more precise pixel mapping. Additionally, you can program pixel parameters in three built-in pixel effects including chase, flow and fade.
The lights come in three different sizes: 2', 4', and 8'(to be available). 2' lets you hide the lights around the scene easily. 4' enables you to create a variety of looks. 8' makes it easy to set up dramatic and impressive spaces. Working with three sizes of lights, you can create diverse attractive patterns and get more creative in building scenes.
Multiple connecting ways are available, wireless CRMX, wired DMX, and the updated Godox Light 3.0. The built-in wireless DMX module by LumenRadio makes controlling the light more convenient and enables you to operate the light with other professional lights in the same control system.
To manage the number of occupied channels, you can switch between 8bit and 16bit modes. 8bit is a fine choice when you have a limited number of channels and need to control more lights. 16bit will play its role when you prefer to get more precise control of color and brightness.
On board screen can be rotated 180 degrees for easy reading after setting up the lights. It eliminates the need to turn your head to adjust the parameters, even in challenging positions.

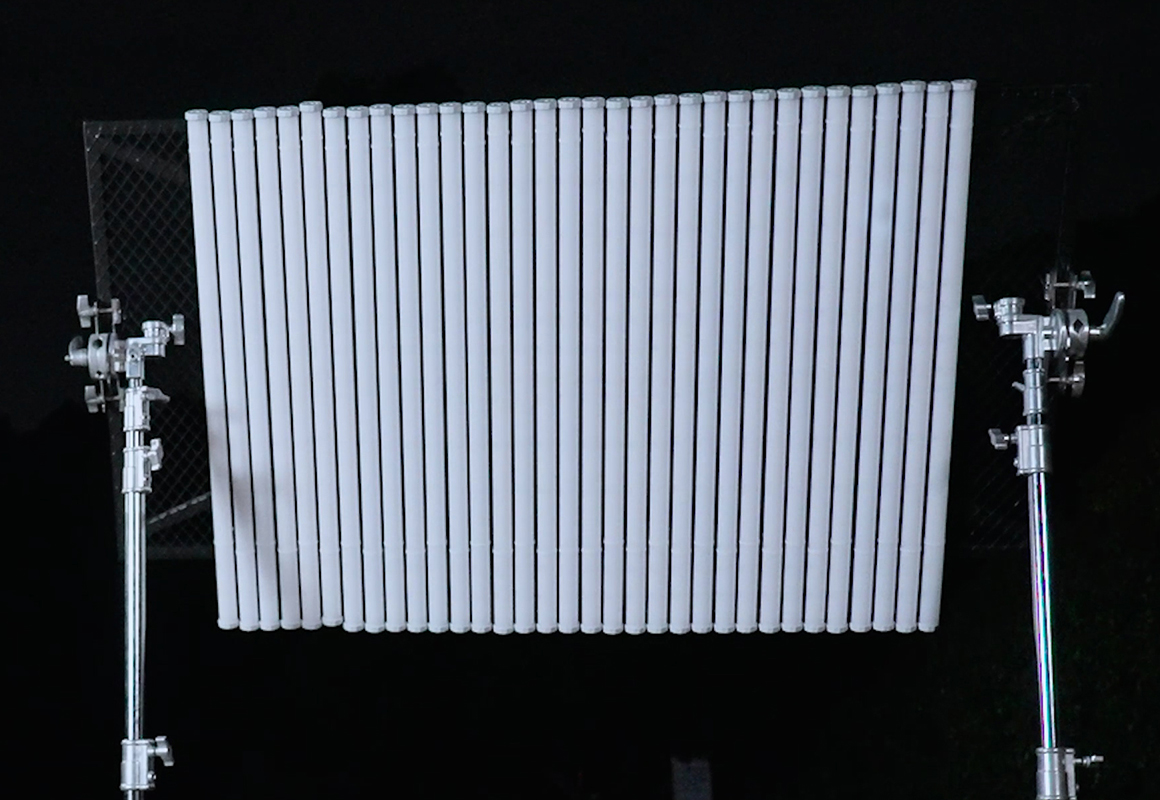

The mapping capability of the light simplifies the process of simulating real-life scenarios. By using mapping software to project video onto a pixel light array, you can acheive light effects that no regular lights are able to. Mapping ensures that changes in light and shadows on illuminated objects appear natural and seamless.

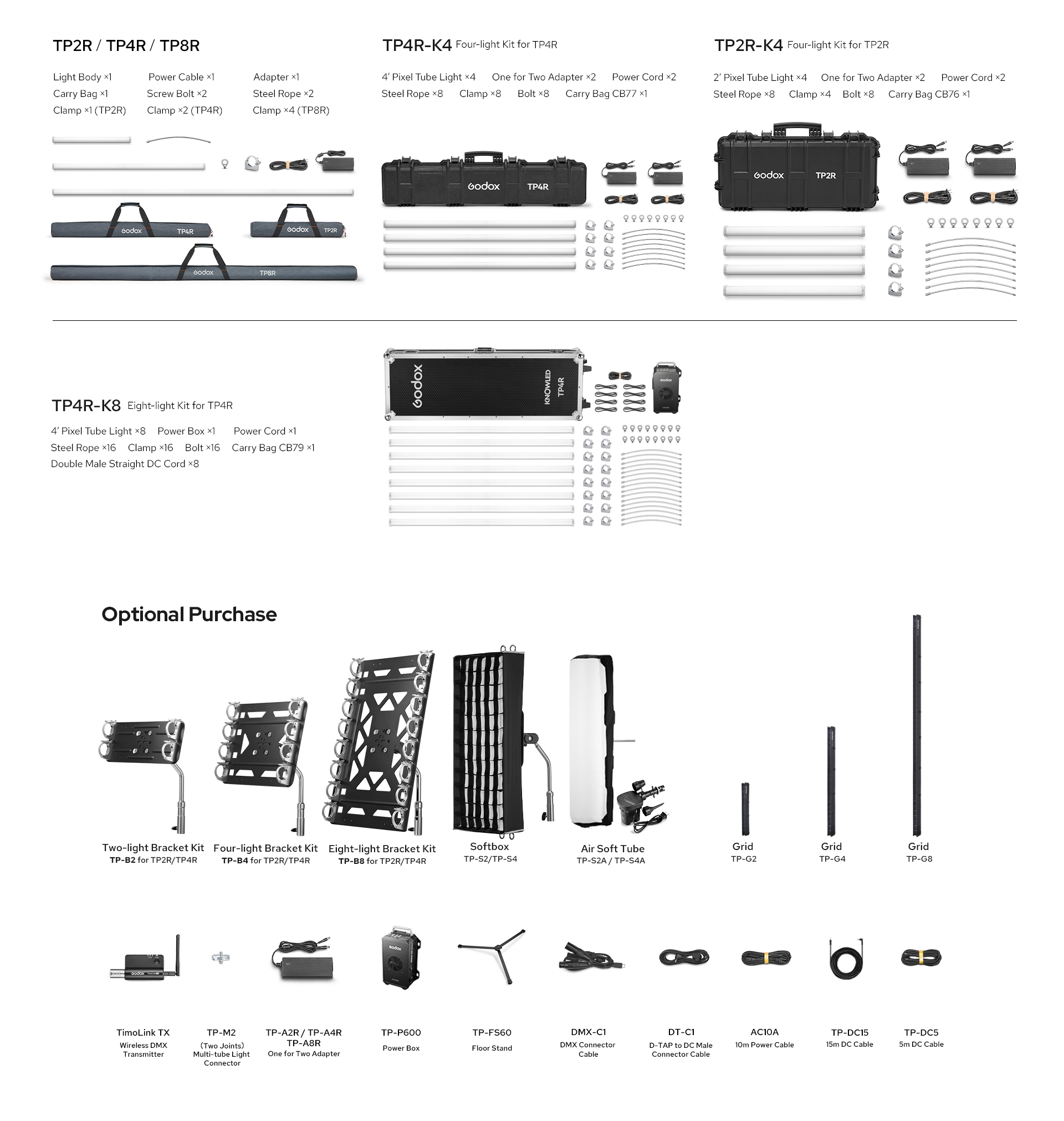

One tube can perform multiple effects. An abundance of accessories is optional for purchase to assist you in creating the desired light effects.
Model | TP2R | TP4R | TP8R |
DC Inputs | 20V⎓1.3A | 20V⎓2.35A | 20V⎓4.15A |
Input Power | ≈26W | ≈47W | ≈83W |
Lithium Battery | 14.4V 2980mAh | 14.4V 5960mAh | 14.4V 11920mAh |
Power Supplies | DC Power Supply/Lithium Battery Power Supply /V-mount Battery Power Supply Note: The V-mount battery should be 14.8V or 26V 100Wh above and sold separately. | ||
Battery Life (in 100% brightness) | Approx. 120min | Approx. 140min | |
Charging Time | Approx. 120min | Approx. 150min | Approx. 180min |
Waterproof Grade | IP65 | ||
Average TLCI | ≥96 | ||
Average CRI | ≥96 | ||
CCT Range | 2000K-10000K | ||
Mode | 5 modes: CCT mode, HSI mode, RGB mode, GEL mode, FX mode | ||
FX Types | 17 | ||
Controlling Methods | DMX512 control, Bluetooth APP control, CRMX control, Light body control, RDM control | ||
Bluetooth Controlling Distance | Max. 30m | ||
Wireless Controlling Distance | Max. 150m | Max. 100m | |
Working Environment Temperature | -10℃~40℃ | ||
Dimension | 47mm*47mm*600mm | 47mm*47mm*1200mm | 47mm*47mm*2300mm |
Net weight≈ | 0.84kg | 1.5kg | 2.94kg |
